Herkunftsort: | CHINA |
Markenname: | HOWO |
Zertifizierung: | ISO/3C/BV/IFA/SGS |
Modellnummer: | ZZ1257V4647B1 |
Min Bestellmenge: | 1 vereinigen |
---|---|
Preis: | Verhandlungsfähig |
Verpackung Informationen: | Nude oder Wachsen im RORO- oder Bulk -Schiff |
Lieferzeit: | 25-30 Tage empfingen nachher Ihre Vorauszahlung |
Zahlungsbedingungen: | L/C, T/T, Western Union |
Versorgungsmaterial-Fähigkeit: | 3000 pro Monat |
Produkt mame: | Öl-Tankwagen | Modell: | ZZ1257V4647B1 |
---|---|---|---|
Farbe: | Weiß | Antriebstyp: | LHD 6×4 |
Motorleistung: | 371 PS | Emissionsstandard: | Euro 2 |
Motor: | WD615.47.371HP Euro2 | ||
Hervorheben: | SINOTRUK HOWO 6×4 oil tank truck,20CBM oil tank truck with fuel dispenser,customizable color oil tank truck |

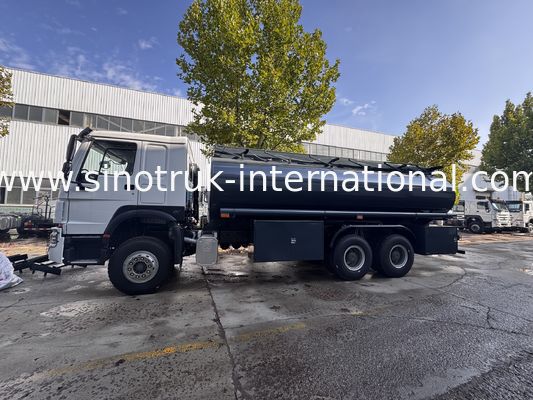

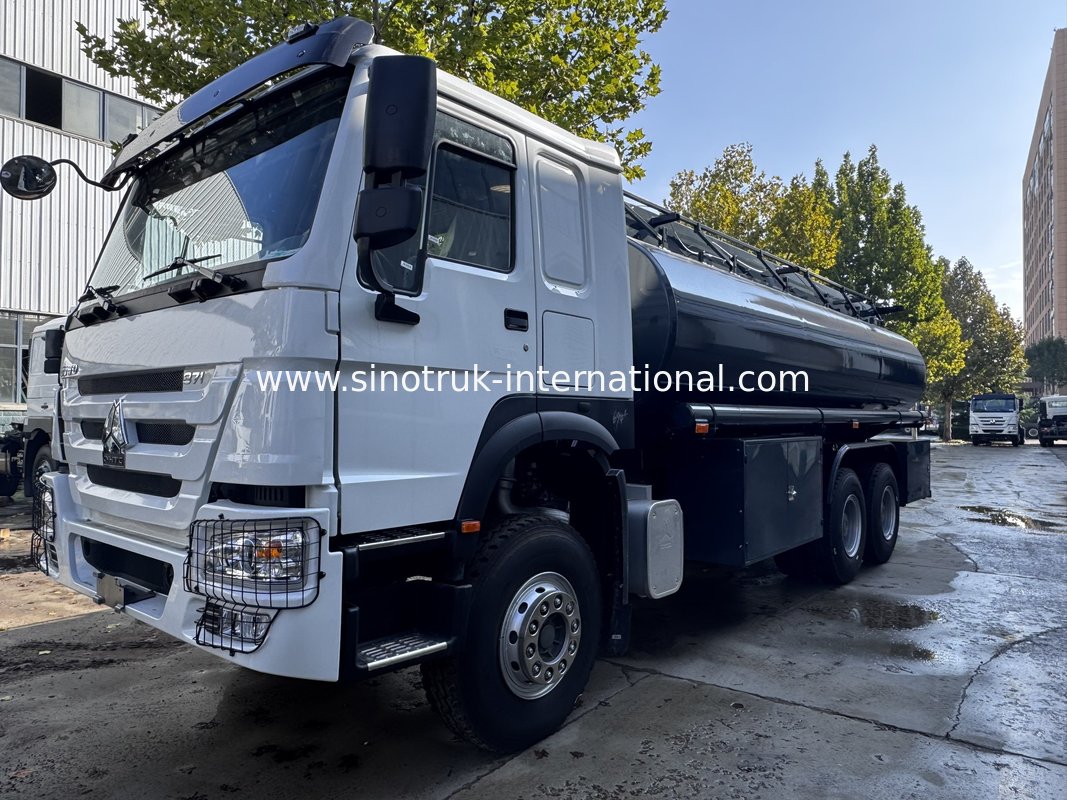

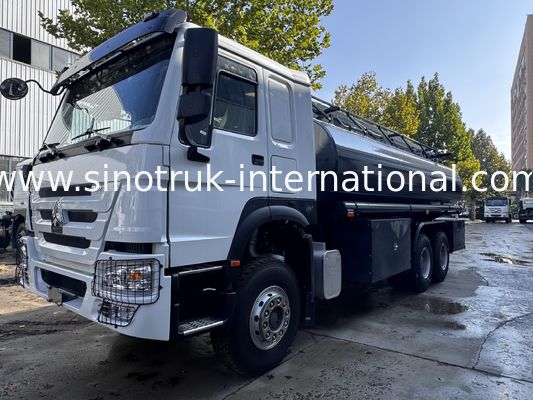

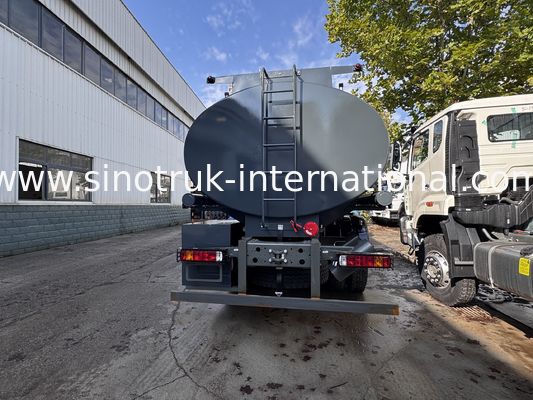

SINOTRUK HOWO 6×4 10 wheels Oil Tank Truck 371HP 20CBM With fuel dispenser
Description:
Oil Tank Truck SINOTRUK HOWOA7 20CBM for Oil Transportation 6X4 LHD Euro2 290HP
HOWO A7 Oil Tank Truck, adopts A7-W Cab technology, and HF7 or HF9 front axle, HC16 driving axles. Chassis drive tyep have 4X2, 6X2, 6X4 and 8X4. The engine power from 266HP, to 420HP.
The Oil tanker is also called mobile fuel trucks, computer refueling vehicle, oil tanker, tanker loading oil, pulling oil, oil truck, edible oil transport vehicle, mainly for oil derivatives (gasoline, diesel oil, lubricating oil and coal tar oil) transportation and storage. According to a variety of gas or oil, and the use of different environment with the oil, pump oil, a variety of oil equipment, put the function. Tanker special part is composed of a tank, PTO, drive shaft, gear pump, pipeline system components. Pipes system is composed of an oil pump, three through four ball valve, two-way valve. Filter pipe.
Our company production of the Oil Tank Truck adopts advanced butt welding technology, the
high pressure gas after the forming of the tank test leak detection, the tank has high
strength, stable center of gravity, vehicle safety and stable; tank welding after shot
blasting pretreatment process, rust, paint adopts advanced baking technology, durable and
beautiful appearance. Independent sub warehouse, packing for different oil products,
chemicals, food, as liquid food truck, chemical liquid truck and insulation liquid
transport vehicle, dangerous goods transport vehicles, the asphalt transport vehicle use.
Specification:
Oil Tank Truck SINOTRUK HOWOA7 20CBM for Oil Transportation 6X4 LHD Euro2 400HP | |
Chassis Model | ZZ1257V4647B1 |
Drive Type | 6×4 |
Engine | WD615.47,371HP Euro2 |
Cabin | A7-W lengthened cab(with one sleeper, air-conditioner and two new-style seat) |
Transmission | HW15710(10 forwards & 2 reverses) |
Front Axle | HF9(1X9 Tons) |
Driving Axle | HC16(1X16 Tons) |
Clutch | hydraulically operating with air assistance |
Rim/ Tire | 11.00R20, Radial tyre |
Wheel base | 4400+1350(mm) |
Capacity of tank body | 16-20CBM |
Thickness of tank body | 5mm,With 5 cabin |
Basic setup | Gear oil pump, flow meter, flash hider, fire extinguisher |
Overall dimension | 9200×2500×3150mm |
The curb weight | 11940(Kg) |
Gross weight | 25000 kg |
Max. speed | 95km/h |
Color | White, red, green, golden and so on. |
Applications:
The Oil tank truck is mainly used for oil derivatives (gasoline, diesel oil, lubricating oil and coal tar oil)
transportation and storage.
Competitive Advantage:
1)with all kinds of truck model, which can fulfil your requirement
2)the key parts adopt the world's top technology products
3)based on strong technical support and top level technology make the trucks with high
quality and more reliable
4)Optimized cargo body structure,light weight,high rigidity,large loading capacity
5)Using the high strength steel,it has long service life
6)Optimized the sealing structure has the better sealing effect.
7)The intelligent hydraulic control system helps to avoid error operation, it has higher safety and running efficiency.
8)Multiple box structures and device selections
9)low fuel consumption
10) strong enough engine
11)competive price, cost-effective
12)quick and efficient spare parts supply bring you more convenient
13)fast delivery time, we can arange production according to your needs exactly and quickly
14) professional import and export dealing precedure, make customs clearance more high efficiency
