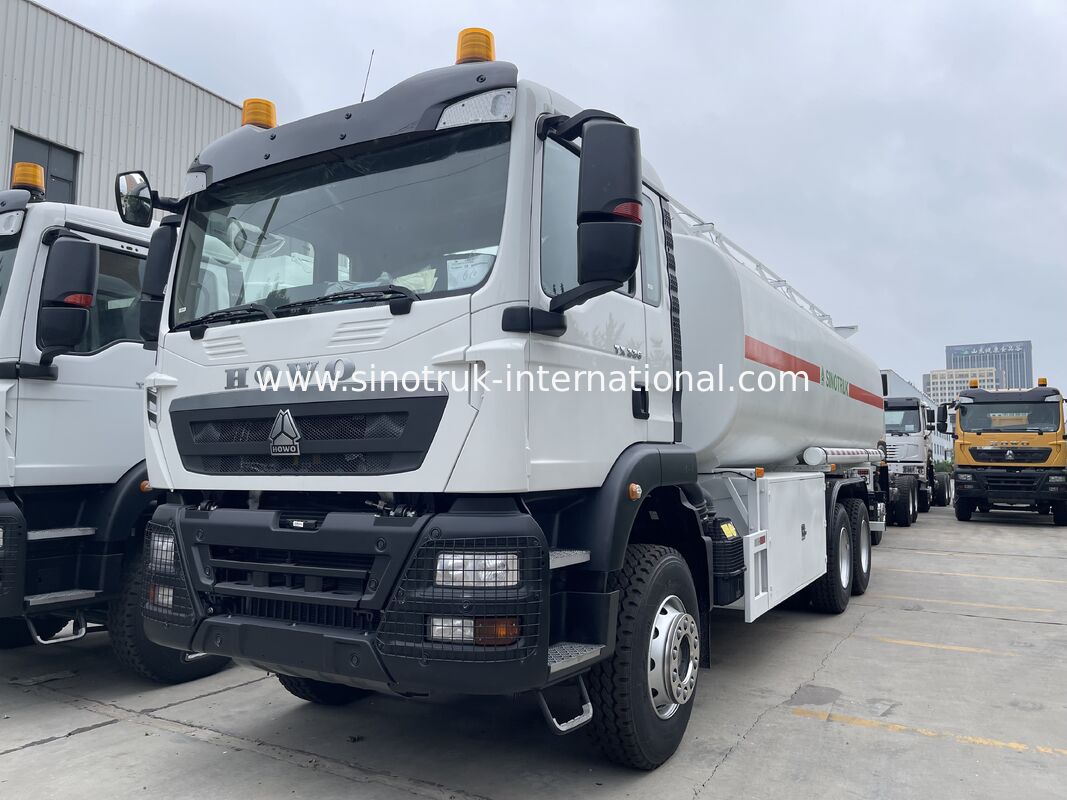

SINOTRUK HOWO Gas Tanker Truck 16-25CBM 6X4 LHD Euro2 336HP

SINOTRUK HOWO Gas Tanker Truck 16-25CBM 6X4 LHD Euro2 336HP

Produktdetails:
Herkunftsort: China
Markenname: SINOTRUK SITRAK
Zertifizierung: ISO/3C/BV/IFA/SGS
Modellnummer: ZZ1257M4341W
Zahlung und Versand AGB:
Min Bestellmenge: 1Einheit
Preis: Verhandlungsfähig
Verpackung Informationen: Wachsen im Schüttgut, Roro Ship, Container
Lieferzeit: 15 Werktage
Versorgungsmaterial-Fähigkeit: 10.000 Einheiten pro Monat
Kontakt
Ausführliche Produkt-Beschreibung
Produktname: Öl-Tankwagen Modell: ZZ1257M4341W
Antriebstyp: LHD 6X4 Emissionsstandard: Euro 2
Motor: WD615.69, 336HP Panzerkörperkapazität: 16-25CBM
Hervorheben:

SINOTRUK HOWO gas tanker truck 6X4

,

Oil tank truck 16-25CBM capacity

,

LHD Euro2 gas tanker 336HP



SINOTRUK HOWO 16-25CBM Oil Tank Truck 6X4 LHD Euro2 336HP Gas Tanker Truck



Description:



The fuel tank truck mainly for oil derivatives (gasoline, diesel oil, lubricating oil and coal tar oil) transportation and storage. According to a variety of gas or oil, and the use of different environment with the oil, pump oil, a variety of oil equipment, put the function. Tanker special part is composed of a tank, PTO, drive shaft, gear pump, pipeline system components. Pipes system is composed of an oil pump, three through four ball valve, two-way valve. Filter pipe.



Our Oil Tank Truck adopts advanced butt welding technology, the

high pressure gas after the forming of the tank test leak detection, the tank has high

strength, stable center of gravity, vehicle safety and stable; tank welding after shot

blasting pretreatment process, rust, paint adopts advanced baking technology, durable and

beautiful appearance.



Specification:



SINOTRUK HOWO 16-20CBM Oil Tank Truck 6X4 LHD Euro2 290HP Gas Tanker Truck
Chassis Model ZZ1257M4341W
Drive Type 6×4
Engine WD615.69, 336HP
Cabin HW76 lengthened cab(with one sleeper, air-conditioner and two new-style seat)
Transmission HW15710(10 forwards & 2 reverses)
Front Axle HF9(1X9 Tons)
Driving Axle HC16(1X16 Tons)
Clutch hydraulically operating with air assistance
Rim/ Tire 11.00R20, Radial tyre
Wheel base 4400+1350(mm)
Capacity of tank body 16-25CBM
Thickness of tank body 5mm,With 5 cabin
Basic setup Gear oil pump, flow meter, flash hider, fire extinguisher
Overall dimension 9200×2500×3150mm
The curb weight 11940(Kg)
Gross weight 25000 kg
Max. speed 95km/h
Color White, red, green, golden and so on.


Applications:



The Oil tank truck is mainly used for oil derivatives (gasoline, diesel oil, lubricating oil and coal tar oil)

transportation and storage.



Competitive Advantage:



1) Our Oil tank truck with advanced butt welding technology, after the forming

of the tank high pressure gas leak detection, the tank has a high intensity, stable center of gravity,

safe and stable vehicle characteristics;

2) Shot blasting pre treatment process after welding tank, rust, paint adopts the advanced baking technology, durable and beautiful appearance. Independent sub positions,

3) Divided into different oil products, chemicals, food, as liquid food truck, chemical liquid truck,

insulation liquid vehicles, dangerous goods transport vehicles, the asphalt transportation vehicle

4) External sandblasting processing of tank, internal anti-corrosion treatment, Outside surface adopts advanced polyurethane paint, beautiful appearance

5) Front and back high spray is optional, water jet diffusion function, 360 degrees of rotation,

150 degree tilt up and down. Options small flow pump, spraying reel to wake insecticidal garden trees

flowers and plants

6) with all kinds of truck model, which can fulfill your requirement
7) the key parts adopt the world's top technology products
8) based on strong technical support and top level technology make the trucks with high quality and

more reliable
9) competitive price, cost-effective
